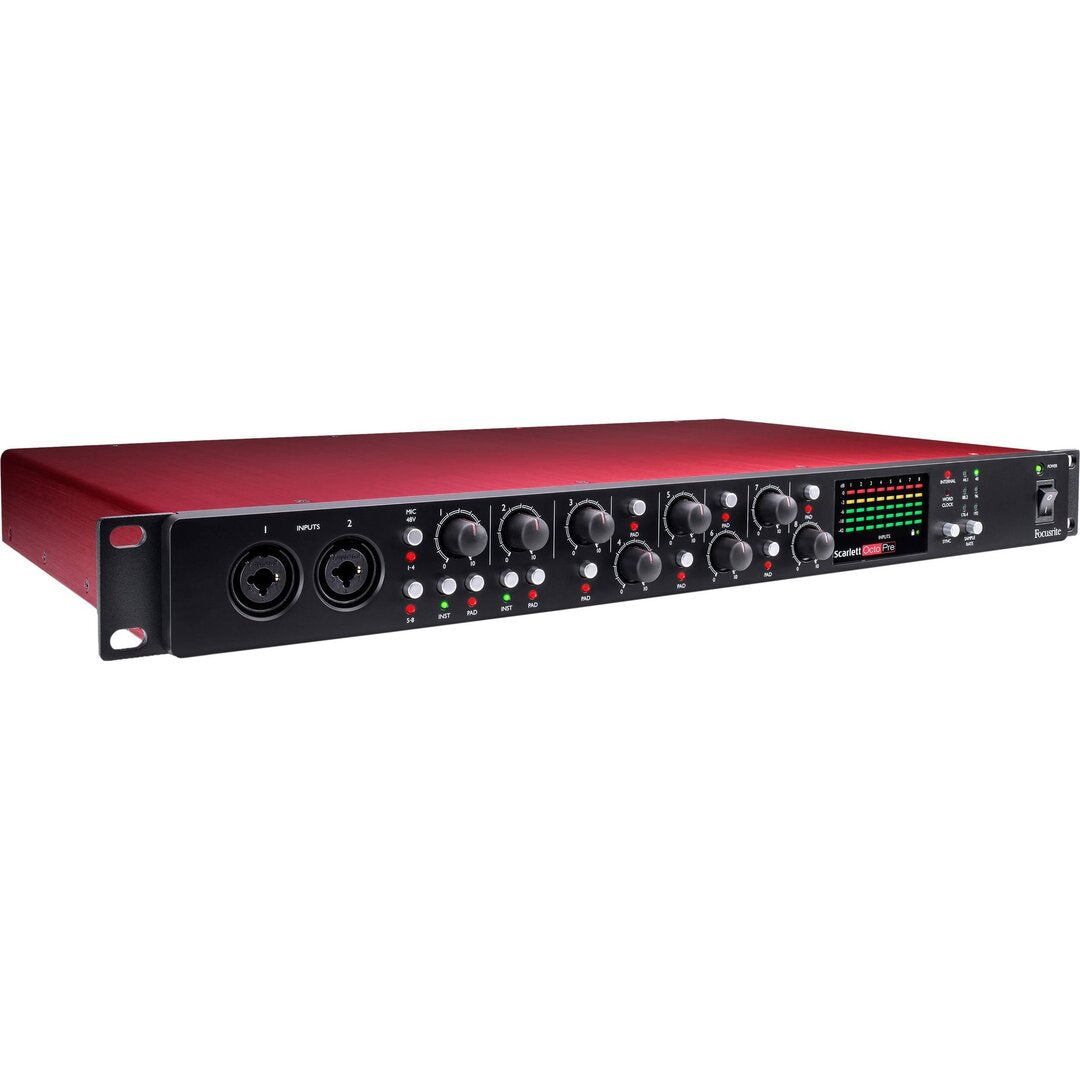

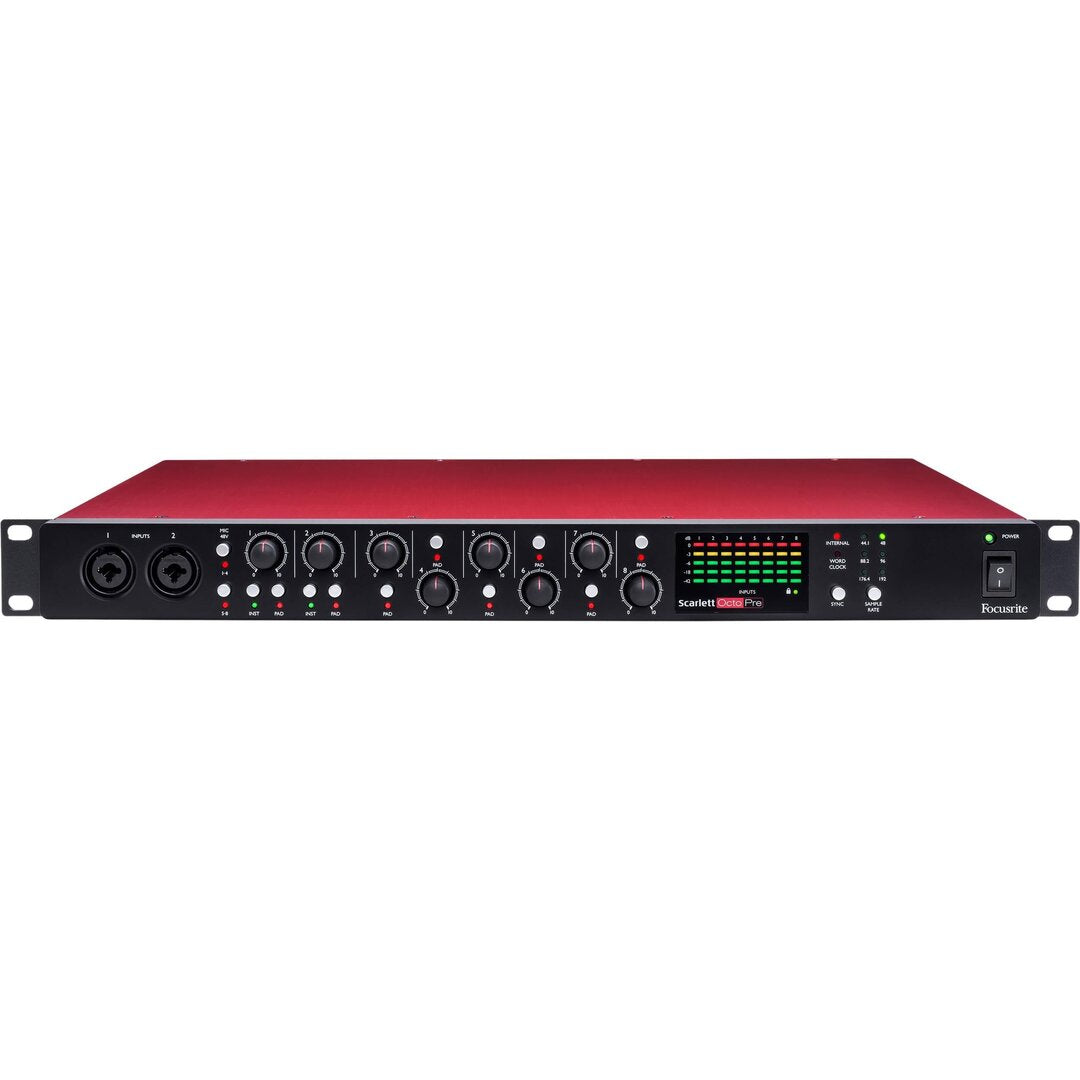

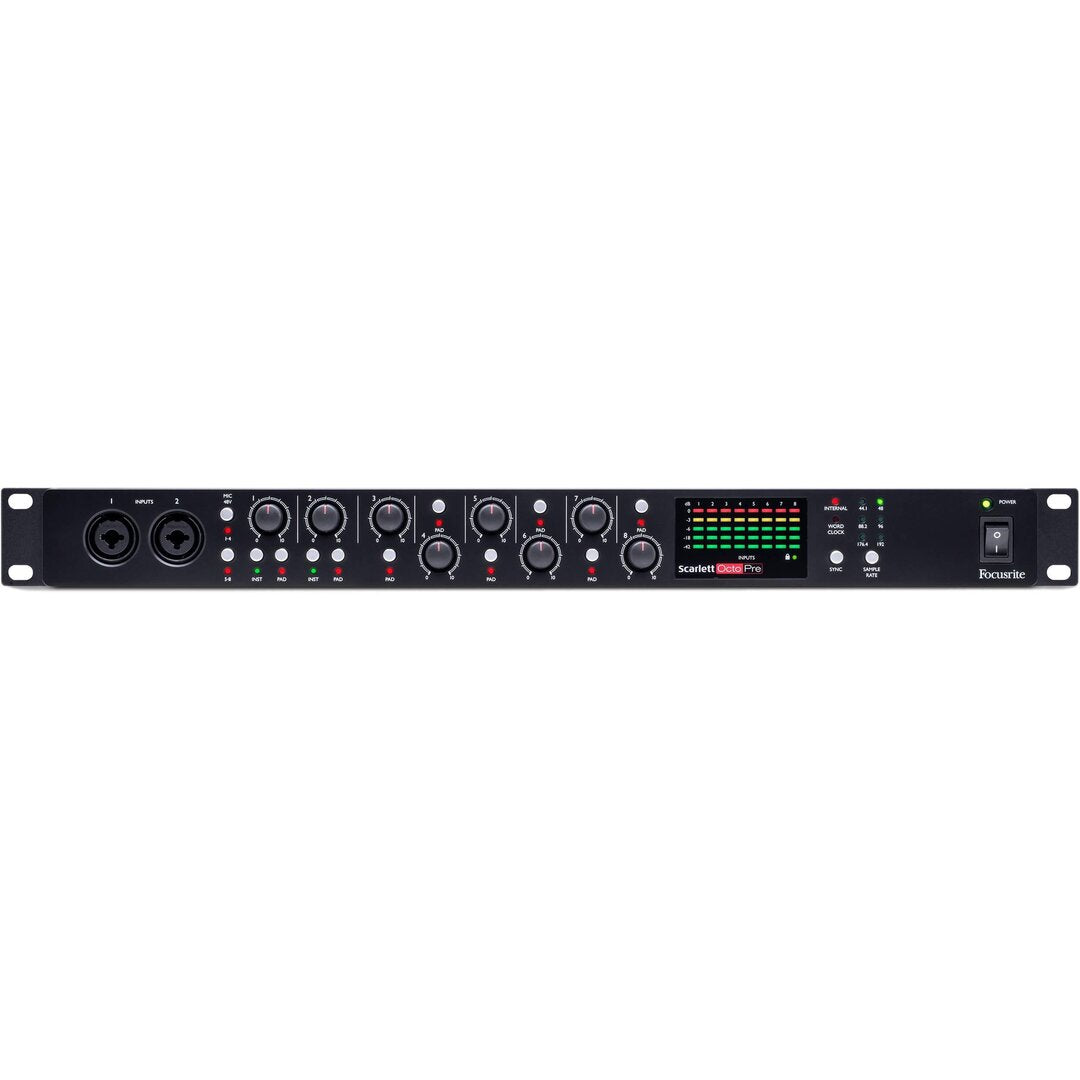

Focusrite Scarlett OctoPre
Focusrite Scarlett OctoPre is backordered and will ship as soon as it is back in stock.
Focusrite Scarlett OctoPre is backordered and will ship as soon as it is back in stock.
Overview
The Scarlett OctoPre is the ideal 8-channel expansion for any Scarlett — or other digital interface with ADAT inputs. ADAT is a simple and easy way of increasing the number of simultaneous recording channels available in your studio. With eight channels of Focusrite's 2nd generation Scarlett preamps and precision A-D conversion at sample rates up to 192 kHz, Scarlett OctoPre is the ideal way of increasing the number of inputs in your studio. It also offers eight balanced line outputs, sourced directly from their respective mic preamps for use on stage in a live environment.
Eight natural-sounding 2nd generation Scarlett mic/line inputs deliver high headroom, plenty of clean gain, low noise and minimal distortion — ideal for tracking drums as well guitars, keyboards, vocals and more. The front panel features two newly-designed instrument inputs with extended headroom. ADAT outputs let you connect to any interface or digital system with ADAT optical inputs, and analogue line outputs let you feed an analogue console at the same time as recording with the digital outputs.
Key features
Eight natural-sounding 2nd generation Scarlett mic preamps
Eight balanced line inputs
Focusrite precision A-D conversion up to sample rates of 192 kHz
Dual front-panel instrument inputs
Pad on every channel for extra headroom — ideal for loud sources such as drums
Eight balanced line outputs — ideal for live use
Accurate 5-segment LED input metering
Simple ADAT connectivity via optical cables
48V Phantom power available on every channel for condenser mics
State-of-the-art digital clocking with Word Clock I/O for synchronisation with external devices
Specifications
Supported sample rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone inputs
Frequency response
20Hz - 20kHz +0.5/-1.5dB
Dynamic range
109 dB (A-Weighted)
THD+N
<0.001%
Noise EIN
-127 dBu
Maximum input level (without pad)
+8 dBu
Maximum input level (with pad)
+16 dBu
Gain range
50 dB
Input impedance
3 kΩ
Line inputs
Frequency response
20Hz - 20kHz +0.5/-1.5dB
Dynamic range
109 dB (A-weighted)
THD+N
<0.002%
Maximum input level
+22 dBu
Gain range
50 dB
Input impedance
49 kΩ
Instrument inputs
Frequency response
20Hz - 20kHz +0.5/-1.5dB
Dynamic range
108 dB (A-weighted)
THD+N
<0.01%
Maximum input level
+13 dBu
Gain range
50 dB
Input impedance
1 MΩ
Line outputs
Maximum output level (0 dBFS)
+16dBu @ 0dBFS, or >21dBu where ADAT output is not used
THD+N
<0.001%
Ouput impedance
136 Ω (Balanced) - for units with serial number ≤ W860083007515
576 Ω (Balanced) - for units with serial number > W860083007515
