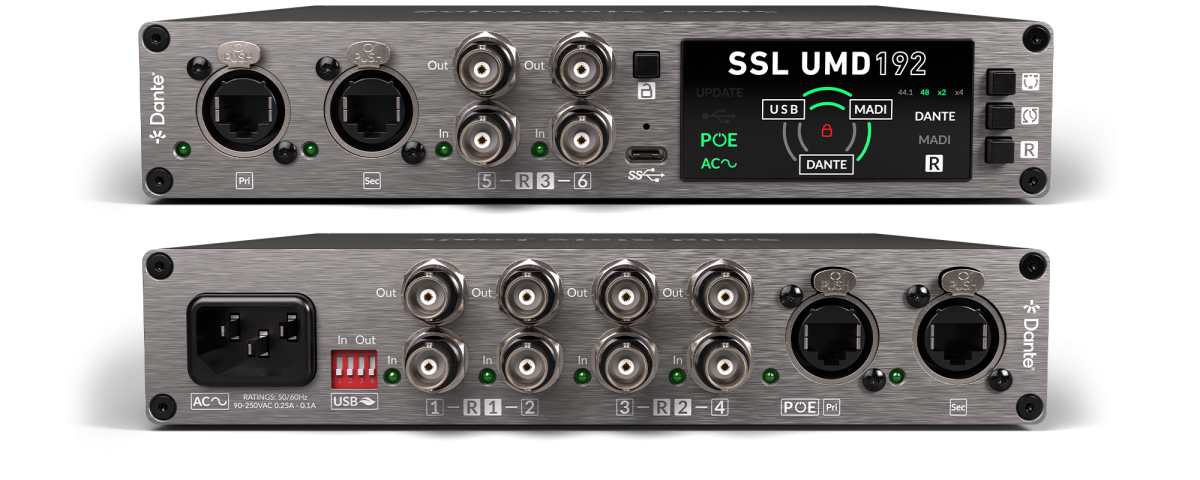

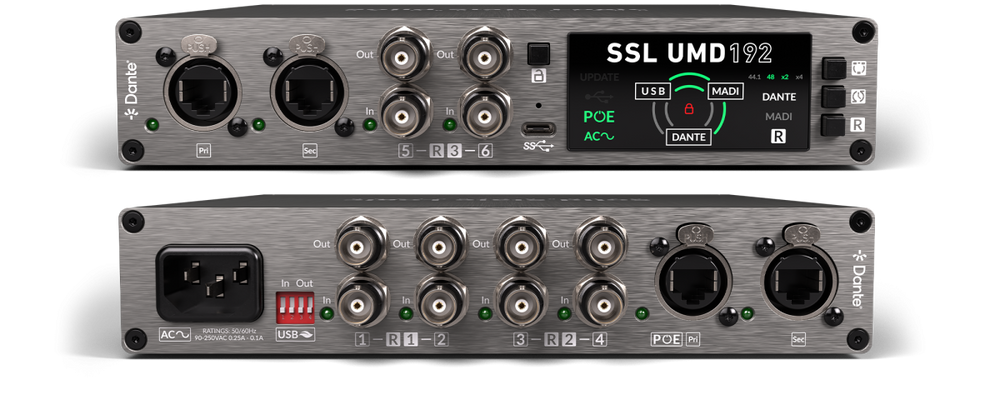

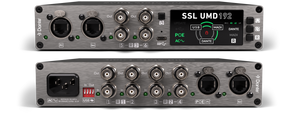

SSL UMD192

Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of high-spec studios, professional live sound, and broadcast environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.

Key Features

192 channels at 48/44.1 kHz, 192 channels at 96/88.2 kHz, and 128 channels at 192/176.4 kHz

USB 3.0 class-compliant interface

Mac OS compatible; Windows support via SSL driver

6x MADI BNC pairs with redundant mode for 3x dual-redundant MADI connections

Fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support

Ultra-low Dante latency—as low as 0.25ms

Flexible clocking from MADI or Dante

Ruggedised Ethernet ports (2x Primary, 2x Secondary) with Link & Activity LEDs

Clear front-panel indicators for signal flow, sample rate matching, power status, and connectivity

Intuitive front-panel controls, with a lockout feature to prevent accidental changes during operation.

Multiple power options: AC, PoE, or USB—with redundancy support

Lightweight and portable design for desktop, console-side, or rack-mounted use

Included cables: USB-C to C, USB-A to C adapter, IEC power cable

Tech Specs

System Requirements and Specs

Mac OS 12 and above | Class-Compliant, Plug-and-play, Windows 11. Install included ASIO/WDM driver.

Connectivity

USB 3.0 Type C Connector (Box includes Type C to C and Type C to A).

Clocking

Can either be clocked from the Dante/AoIP network or clocking from the incoming MADI stream on port 1. When MADI ports are in redundant mode MADI clock will come from the active MADI input on the redundant pair.
