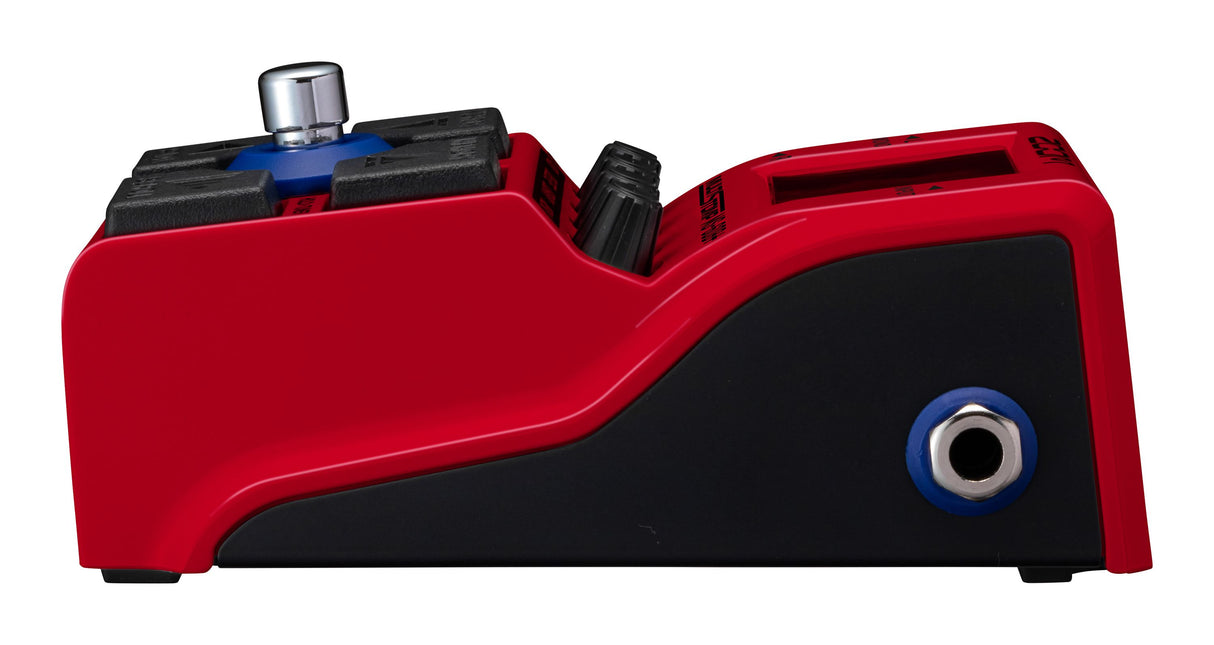

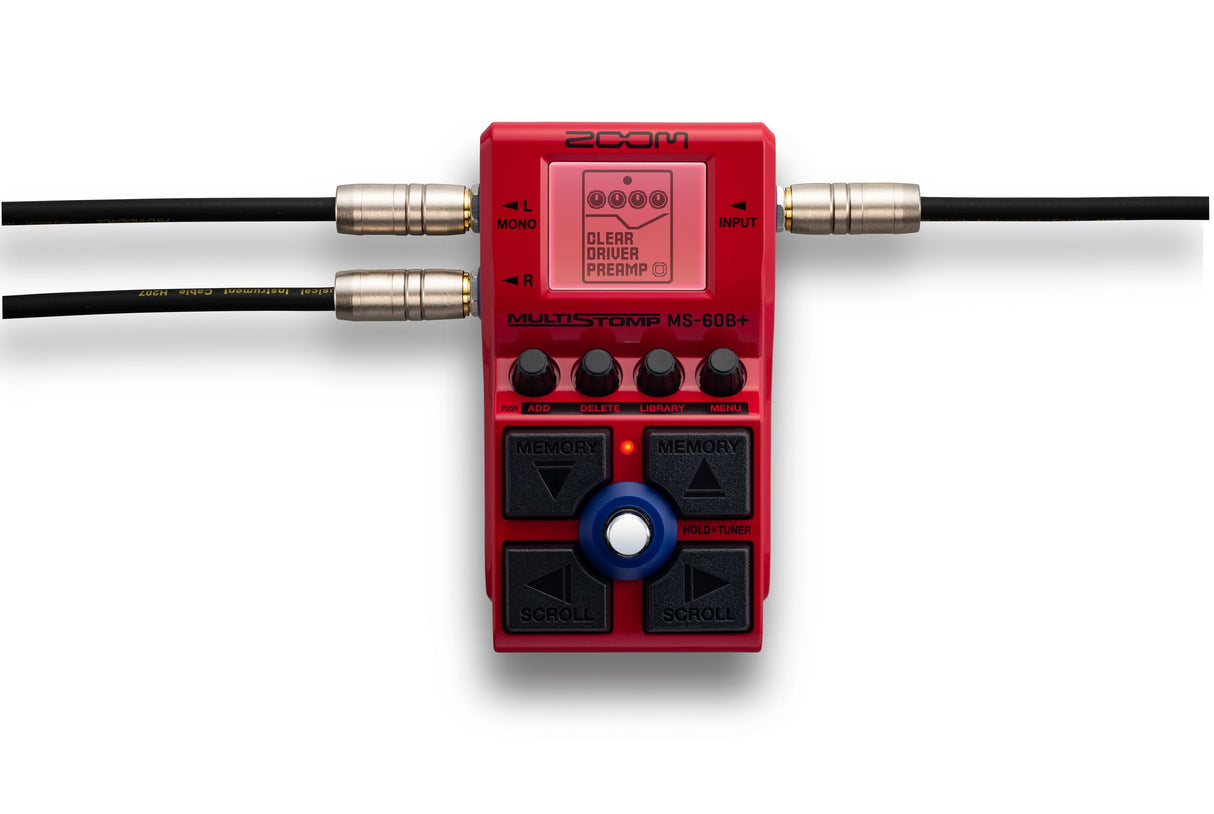

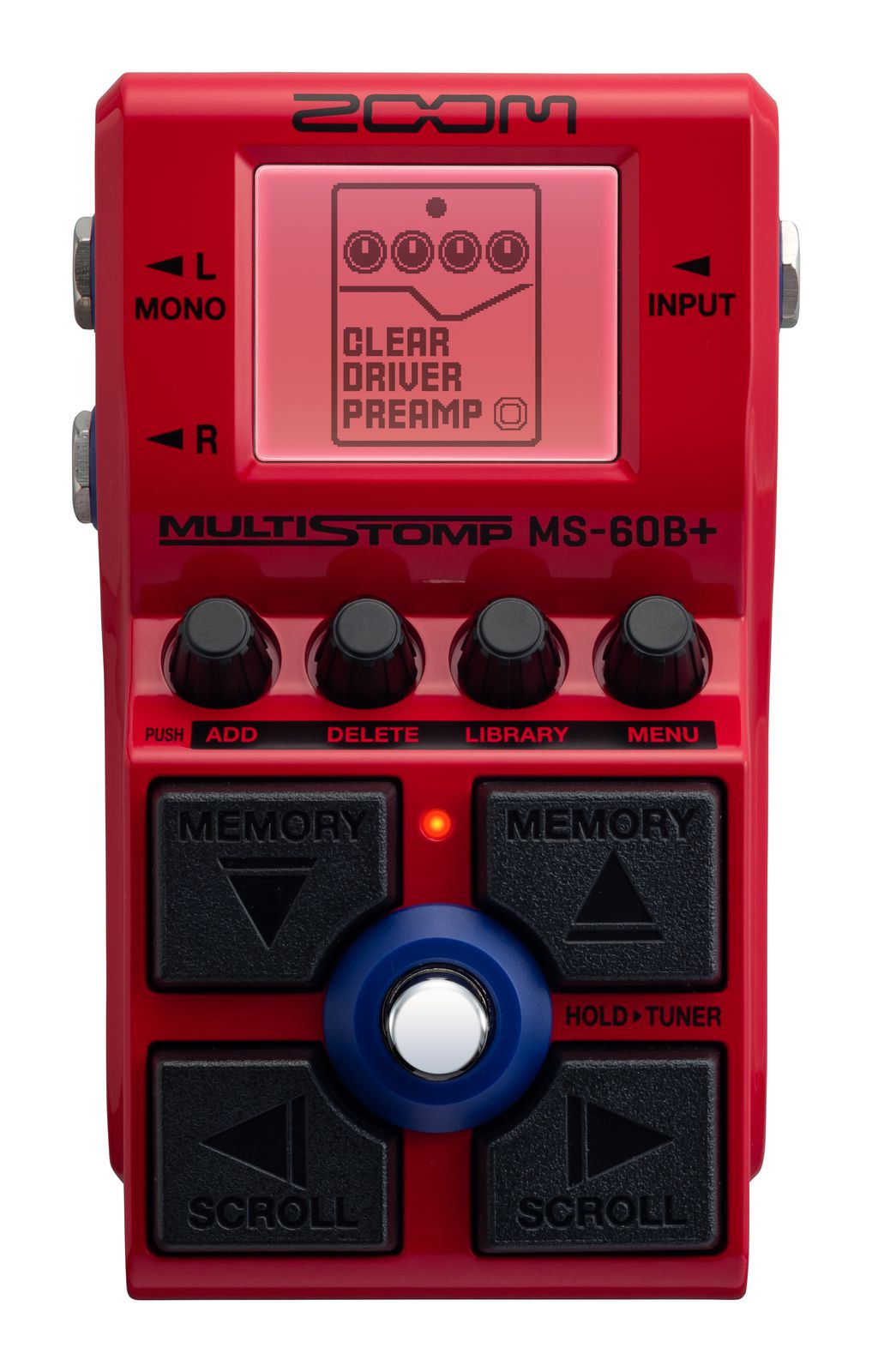

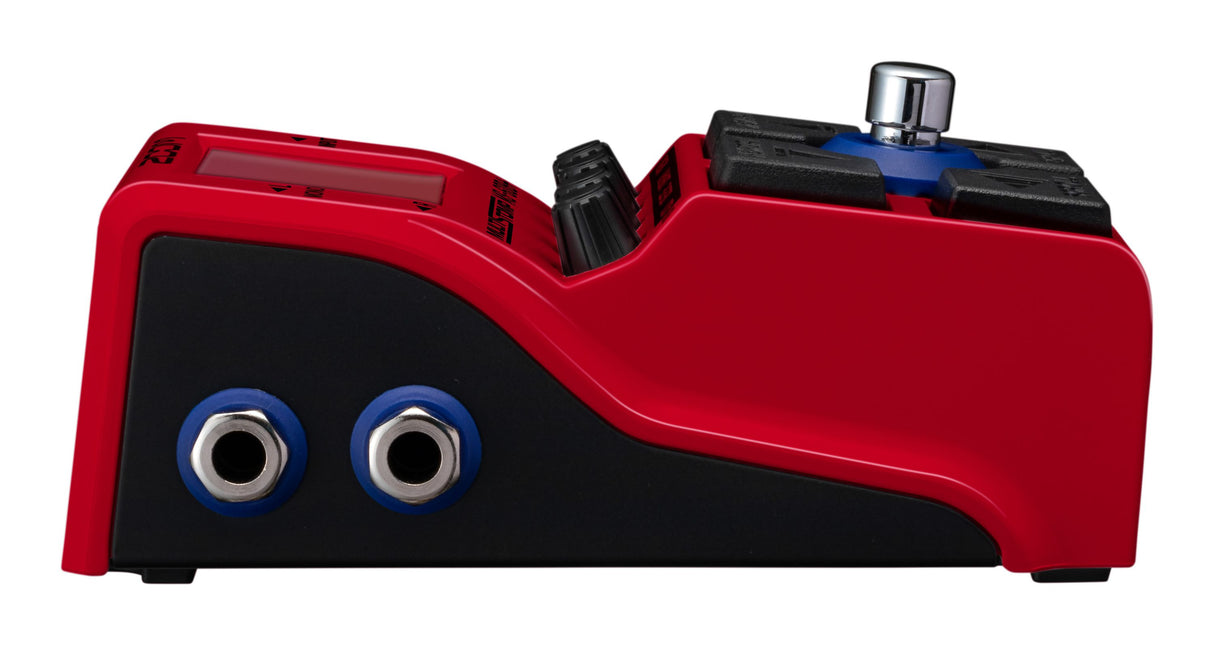

ZOOM MS-60B+

MS-60B+ Features

95+ Bass effects, including amps, preamps and effects

11 preamp models

11 realistic amp/cabinet models with Multi-Layer IR

Use up to 6 effects at the same time

100 memory patches (85 factory preset + 15 user)

Improved analog circuit with minimal sound deterioration

Single stompbox design

4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot

Improved UI for easier navigation and control

Stereo output supports split output signals and stereo effects

LCD backlight that changes color depending on the selected effect category

USB MIDI Support

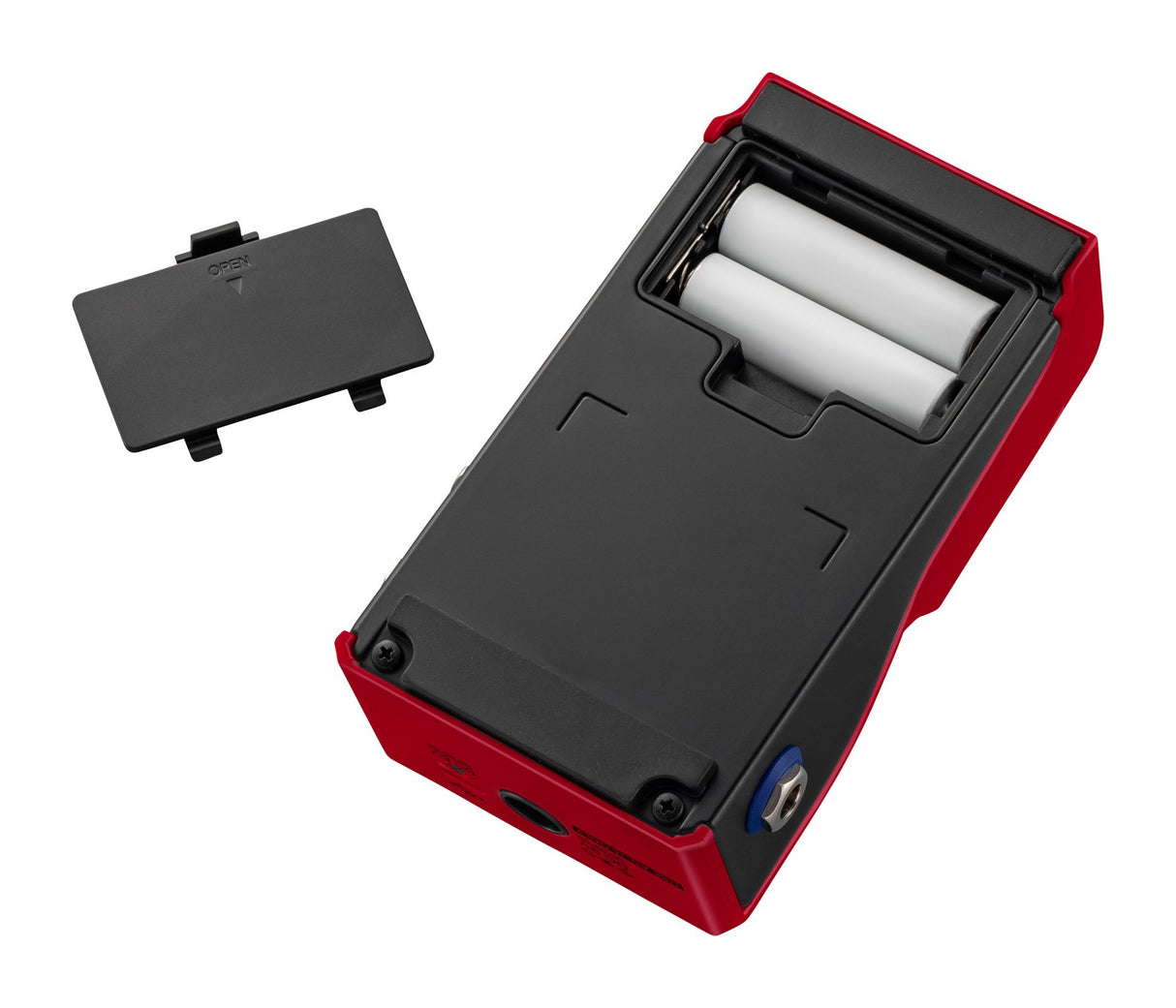

Runs on 2 AA batteries or AC Adapter

Chromatic tuner supports all standard bass guitar tunings, including open & drop tunings

Handy Guitar Lab App for iOS

Specs

Maximum number of simultaneous effects 6 effects

User patch memories 100

Sampling frequency 44.1 kHz

A/D conversion 24-bit 128× oversampling

D/A conversion 24-bit 128× oversampling

Signal processing 32-bit

Frequency response 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)

Display 160×128 dot-matrix LCD

Input INPUT Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ

Outputs L/R Standard mono phone jack Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)

Input S/N 122 dB

Noise floor (residual noise) L/R –100 dBu

Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)

Estimated operation times using batteries • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. Alkaline batteries: about 7 hours NiMH batteries (1900 mAh): about 6.5 hours Lithium batteries: about 14 hours

USB Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.

Dimensions 133 mm (D) × 79 mm (W) × 61 mm (H)

Weight 353 g (excluding batteries) 400 g (including batteries)
