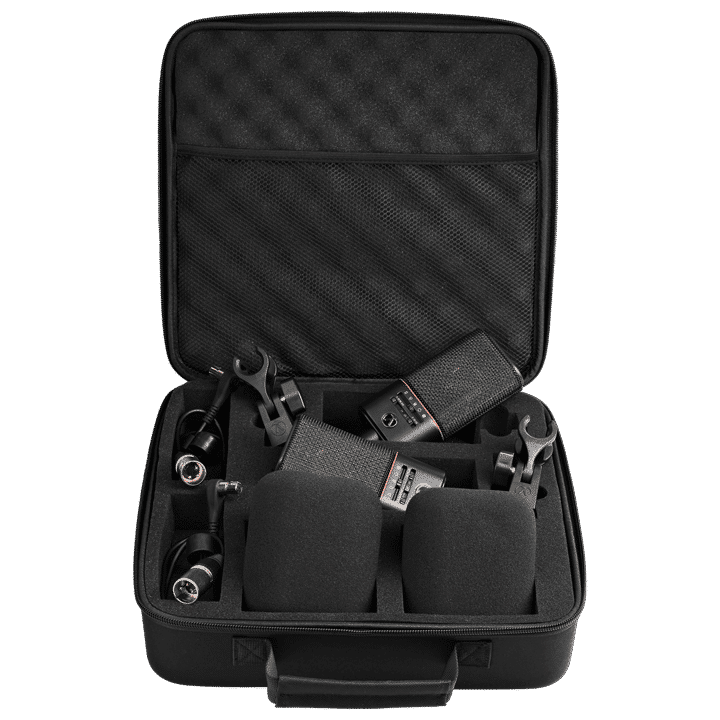

Austrian Audio OC818 Dual Set Go

The Austrian Audio OC818 multi-pattern condenser microphone combines classic design with modern innovation to go where no mic has gone before. Our handmade CKR12 ceramic capsule reimagines the celebrated CK12 capsule to deliver exceptional detail and nuance while also handling extremely high SPL. Each OC818 is manufactured and tested to the highest specifications at our Vienna facility, ensuring premium build quality and performance you can trust. OC818 is the most versatile condenser microphone ever made, and is destined to chart a legacy of its own. Made in Vienna. Again.

Key Features

* Handmade CKR12 Capsule: Engineered and built in Vienna, this ceramic capsule ensures extreme consistency, allowing any OC818 to be match-paired with another.



* Dual Output Technology: Featuring a secondary mini-XLR output on the rear, the OC818 allows you to record the front and rear diaphragms independently. This enables "re-mic'ing" the polar pattern in post-production.



* Remote Control & Plugin Suite:

* PolarDesigner Plugin: Change or automate polar patterns across 1–5 frequency bands in your DAW after the recording is finished.



* PolarPilot App: (Requires optional OCR8 Bluetooth Dongle) Real-time wireless control over polar patterns, high-pass filters, and pads via iOS/Android.



* StereoCreator & AmbiCreator: Specialized plugins for X/Y, M/S, Blumlein, and Ambisonic B-format processing.



* Advanced Analog Circuitry: Despite the digital control options, the audio path remains 100% analog, ensuring sonic purity.



Technical Specifications

Directional characteristic (Multi)

Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable

Frequency range

20 Hz – 20 kHz

Sensitivity (all directions)

13 mV/Pa

Equivalent noise level

9 dB SPL (A)

Max. SPL

148 dB SPL (158 dB SPL)

Analog low cut filter

40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)

Switchable pad

-10 dB, -20dB

Impedance

275 Ω (symmetrical)

Load impedance

> 1 kΩ

Supply voltage

48 V (< 4mA, typical 2.1mA)

Main connector

XLR 3 pin

Second connector

Mini XLR 5 pin connector for back membrane

Dimensions

157 x 63 x 36 mm

Weight

360g
