Austrian Audio OC818 Dual Set Plus

The Austrian Audio OC818 Dual Set Plus is a premium, professional-grade microphone system designed for critical studio, broadcast, and live applications. Centered around the handmade CKR12 ceramic capsule—a modern evolution of the legendary CK12—the OC818 is a large-diaphragm condenser that combines vintage sonic character with groundbreaking digital control.

The "Dual Set Plus" is a comprehensive stereo recording solution, featuring two factory-matched OC818 microphones and a full suite of professional accessories for advanced stereo configurations.

Key Features

* Handmade CKR12 Capsule: Engineered and built in Vienna, this ceramic capsule ensures extreme consistency, allowing any OC818 to be match-paired with another.



* Dual Output Technology: Featuring a secondary mini-XLR output on the rear, the OC818 allows you to record the front and rear diaphragms independently. This enables "re-mic'ing" the polar pattern in post-production.



* Remote Control & Plugin Suite:

* PolarDesigner Plugin: Change or automate polar patterns across 1–5 frequency bands in your DAW after the recording is finished.



* PolarPilot App: (Requires optional OCR8 Bluetooth Dongle) Real-time wireless control over polar patterns, high-pass filters, and pads via iOS/Android.



* StereoCreator & AmbiCreator: Specialized plugins for X/Y, M/S, Blumlein, and Ambisonic B-format processing.



* Advanced Analog Circuitry: Despite the digital control options, the audio path remains 100% analog, ensuring sonic purity.



Technical Specifications

Feature Specification

Transducer Type Large-diaphragm Condenser (CKR12 Ceramic Capsule)

Polar Patterns Omni, Cardioid, Supercardioid, Figure-8 (255 stages via app)

Frequency Range $20\text{ Hz} - 20\text{ kHz}$

Sensitivity $13\text{ mV/Pa}$

Equivalent Noise Level $9\text{ dB SPL (A)}$

Max SPL $148\text{ dB (up to } 158\text{ dB with pad)}$

Low Cut Filter $40\text{ Hz (2nd order)}, 80\text{ Hz (2nd order)}, 160\text{ Hz (1st/2nd order)}$

Pad $-10\text{ dB}, -20\text{ dB}$

Impedance $275\ \Omega\text{ (balanced)}$

Load Impedance $> 1\text{ k}\Omega$

Supply Voltage $48\text{V Phantom Power}$

Weight (Per Mic) $360\text{ g}$

Dimensions $157 \times 63 \times 35\text{ mm}$

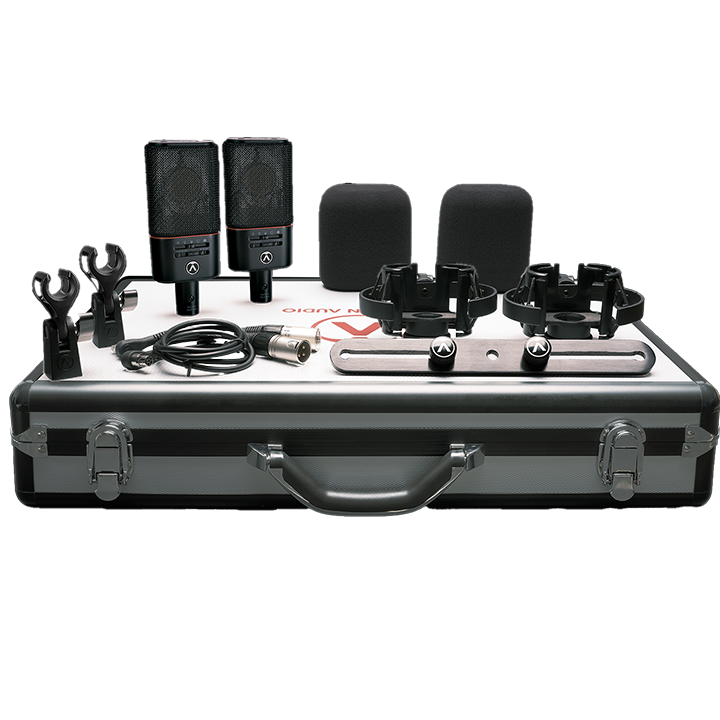

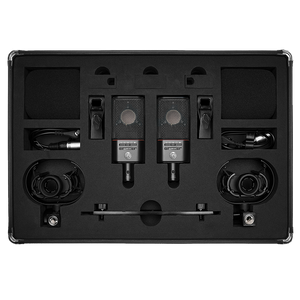

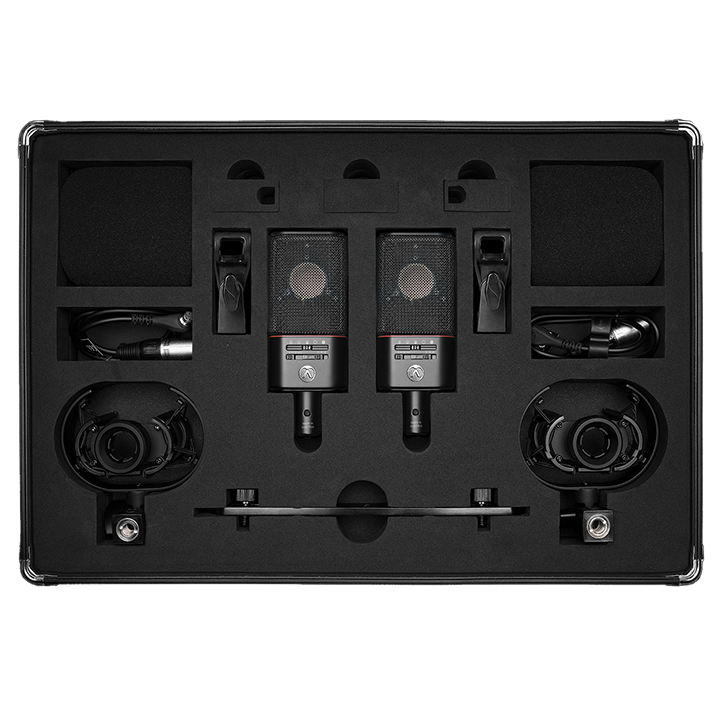

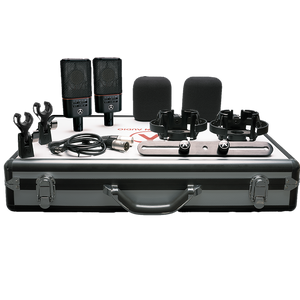

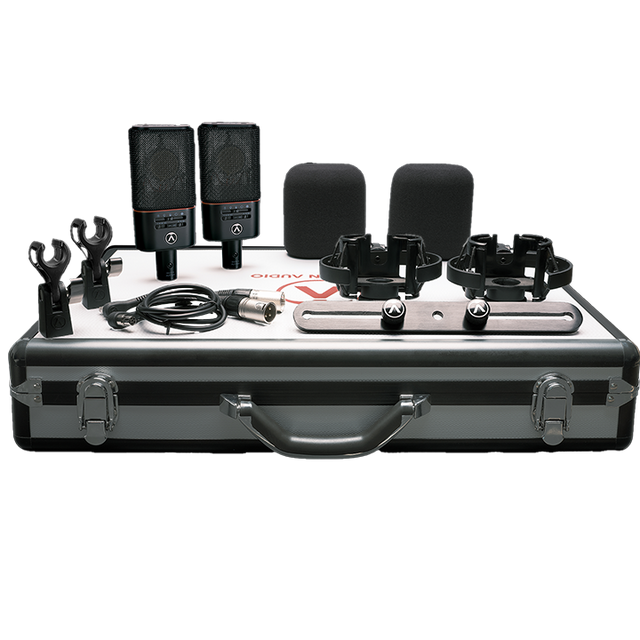

Package Contents (Dual Set Plus)

The "Plus" set is the most complete bundle offered by Austrian Audio, containing:

* 2x OC818 Large-diaphragm Condenser Microphones (Black)



* 2x OCS8 Spider Shockmounts



* 2x OCH8 Microphone Clips



* 2x OCW8 Foam Windshields



* 2x OCC8 Mini-XLR to XLR Cables (for dual output)



* 1x SB1 Stereo Bar (Adjustable for precise stereo alignment)



* 1x Large Protective Aluminum Transport Case



Note: To unlock wireless remote control functionality, the OCR8 Bluetooth Dongle is required (sold separately). The PolarDesigner and StereoCreator plugins are available as free downloads from the Austrian Audio website.
