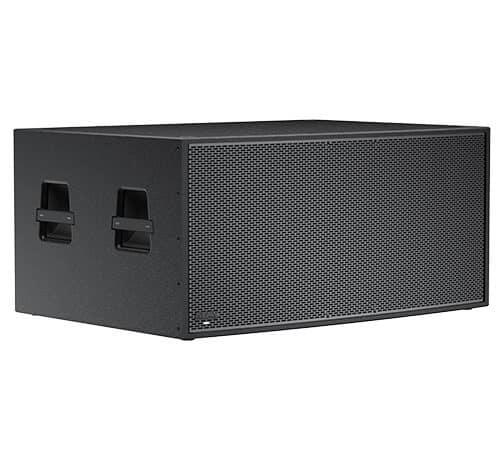

EAW RSX218

Subsystem

Transducers:

2× 18in, 3in voice coil cone

Loading

Vented

Operating Mode

Single Amp

Signal Processing

DSP w/DynO™

ACCOUSTICAL PERFORMANCE

Frequency Response 27 Hz - 125 Hz

Max SPL 141 dB (Half Space)

Nominal Beamwidth

Horizontal 360°

Vertical 360°

ELECTRICAL PERFORMANCE

Input

Electronically balanced XLRF, RJ45

Loop

Electronically balanced XLRM, RJ45

Amplifier

Class D

1400 W @ 8 ohm

Integral DSP limiting

AC Mains (nominal)

Neutrik PowerCon

50 Hz to 60 Hz

100V to 240V

Controls/Communication

Connections 2x Neutrik® etherCON™, RJ-45

Protocols Ethernet/Dante

Software EAWmosaic™ (available on the App Store)

Indicators LCD Screen on amplifier panel for UI,

Logo LED (User-definable behavior)

User Controls Push-button Rotary Encode
